Bionicon Bike Forks

Bionicon forks are integrated units with

the patented one button on-the-fly

adjustable suspension and not

available separately.

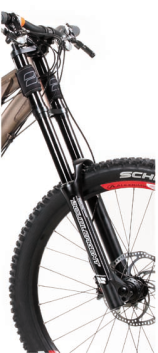

DOUBLE AGENT TA 170mm

• 90-170mm infinitely adjustable suspension travel, control switch on handlebar

• Linear air suspension rate

• Shim-based oil compression and rebound unit

• Safety spring and integrated bottom out protection

• Bomber head set and steerer tube System (F.I.T. Front Impact Transmission)

• Infinitely adjustable stem angle (for oversized 31.8mm handlebar)

• Ultra light magnesium fork lower with 20mm thru axle

• 35mm, hardened 7052 AL stanchions

• Long life lubrication system

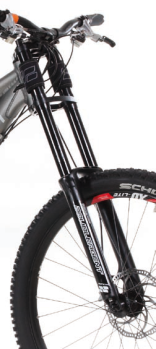

DOUBLE AGENT 150mm

• 70-150mm infinitely adjustable suspension travel, control switch on handlebar

• 1790g (2300g, incl. handlebar, stem and bearings)

• Linear air suspension rate

• Long life lubrication system

• Automatic Air Channel rebound control

• Optional shim based oil cpmpression and rebound

cartridge

• 180 degree steering lock

• Safety spring and integrated bottom out protection

• Bomber head set and steerer tube System (F.I.T. Front Impact Transmission)

• Infinitely adjustable stem angle

• Ultra light magnesium fork lower, standard quick

release drop out system

• 35mm, hardened 7052 AL stanchions

• New casting upgradeable to 170mm

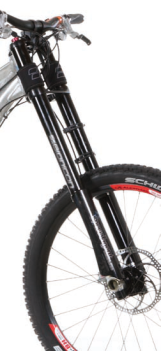

SPECIAL AGENT UPSIDE DOWN 200mm

• 100-200mm infinitely adjustable suspension travel, control switch on handlebar

• 2950g (3980g, incl. handlebar, stem and bearings)

• Air-Coil spring combination with linear suspension rate

• Long life lubrication system

• Safety spring and integrated bottom out protection

• Shim-based compression and rebound adjustment

• Bomber head set and steerer tube system (F.I.T. Front

Impact Transmission)

• Infinitely adjustable stem angle (for oversized 31.8mm

handlebar)

• Hardened 7052 AL stanchions (40mm, black) and

upper legs (up to 48mm)

• Hub 35: large 35mm hollow axle with AntiTwist technology always remains a part of the hub and is easy to remove from the fork; Rohloff disc standard

• Quick-locking axle system

Bionicon Fork Systems

Suspension forks play a crucial role in the ride of a bike in terms of travel, feel & flex. Bionicon develops its own forks so that we can determine how they handle on and off the bike. Telescopic forks are the most stressed part of a bike and require regular maintenance. How easily and quickly can a fork be serviced? Do I need specialist tools, training and knowledge? All Bionicon forks can be completely disassembled using just a multi-tool! A full service takes minutes…

All fork models use dual crowns and oversized stanchions. This gives the maximum stiffness for the minimum weight and creates space for large volume, low pressure air springs and damping cartridges. Our forks are engineered on a modular basis, if one stanchion needs replacing it takes minutes. New fork upgrades can be retro-fitted to all older bike models.

All forks are only made for use in BIONICON bikes and feature:

BIONICON travel adjustment system
Headset F.I.T. system (36/45 degree angular contact bearing)
Multiangle stem system
